Nora NPSU-60W/24 24V 60W Constant Voltage Class 2 Dimmable Driver

24V Constant Voltage Class 2 Dimmable LED driver can be used with Nora Lighting’s 24 Volt systems. Compatible with Triac, ELV, MLV, 0-10V, or PWM dimmers and a wide range of applications.

Features

• Wattage: 60W
• Input Voltage: 110-277V
• Output Voltage: 24V
• Dimming: Triac, ELV, MLV, 0-10V or PWM
• Protection: Over-current, over-voltage and over-temperature protection

• Knockouts: Five Knockouts

Compatible Fixture  (Sold Separately):

• Puck Light - NMP2-A , NMP2-LED
• Tape Light - NUTP14-COB24CV16-927 , NUTP14-COB24CV16-930 , NUTP14-COB24CV16-935 , NUTP14-COB24CV16-940 , NUTP14-COB24CV100-927 , NUTP14-COB24CV100-930 , NUTP14-COB24CV100-935 , NUTP14-COB24CV100-940 , NUTP15-COB24CV16-927 , NUTP15-COB24CV16-930 , NUTP15-COB24CV16-935 , NUTP15-COB24CV16-940 , NUTP15-COB24CV100-927 , NUTP15-COB24CV100-930 , NUTP15-COB24CV100-935 , NUTP15-COB24CV100-940 , NUTPCOB-RGBW24CV16

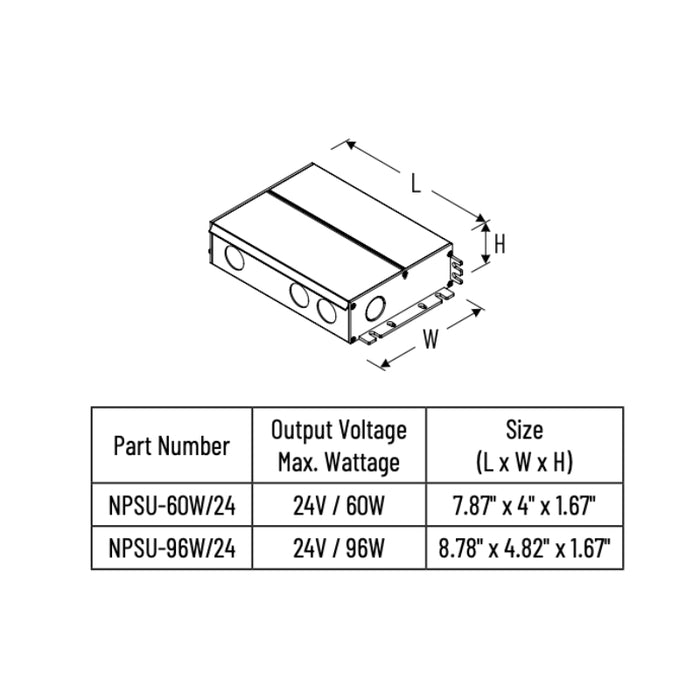

Dimensions

• Length: 7.87"
• Width: 4"
• Height: 1.67"

Documents

• Spec Sheet
• Instruction Sheet

Accessories  (Sold Separately):

• Power Line Connector: NALTL-10 , NALTL-30
• Power Line Splitter: NATL-302W

Labels and Listings

• cULus Listed
• Suitable for dry, damp or wet locations

• RoHS & FCC compliant
