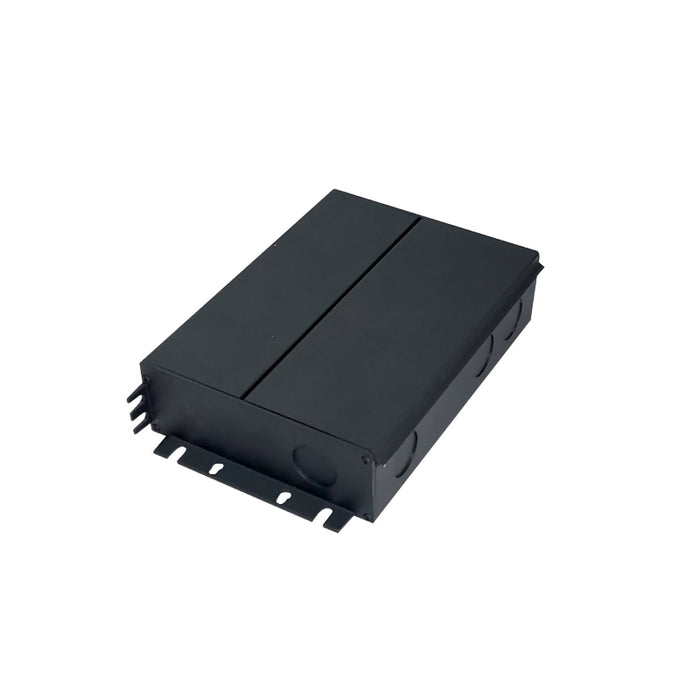

Nora NPSU-60W/12 12V 60W Constant Voltage Class 2 Dimmable Driver

12V Constant Voltage Class 2 Dimmable LED driver can be used with Nora Lighting’s 12 Volt systems. Compatible with Triac, ELV, MLV, 0-10V, or PWM dimmers and a wide range of applications.

Features

• Wattage: 60W
• Input Voltage: 110-277V
• Output Voltage: 12V
• Dimming: Triac, ELV, MLV, 0-10V or PWM
• Protection: Over-current, over-voltage and over-temperature protection

• Knockouts: Five Knockouts

Compatible Fixture  (Sold Separately):

• NMP2-A
• NMP2-LED

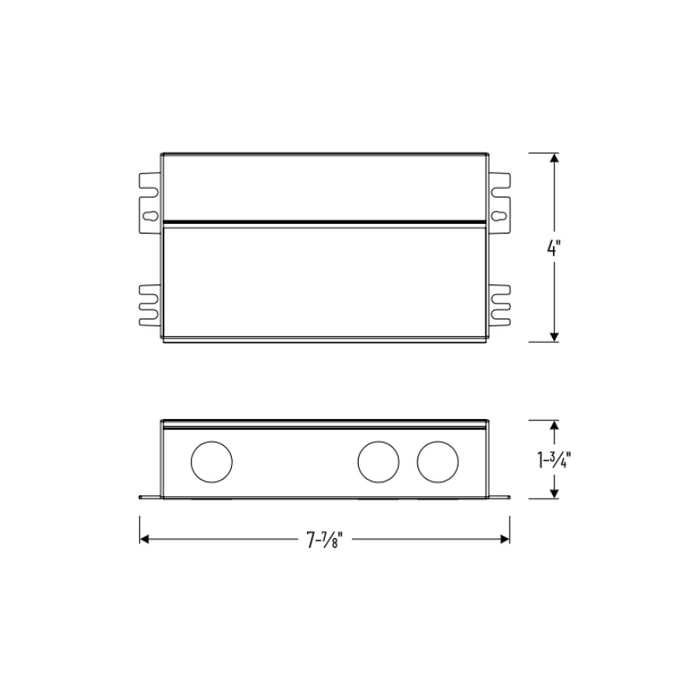

Dimensions

• Length: 7.88"
• Width: 4"
• Height: 1.75"

Documents

• Spec Sheet
• Instruction Sheet

Accessories  (Sold Separately):

• NALTL-10
• NALTL-30
• NATL-302W

Labels and Listings

• cULus Listed
• Suitable for dry, damp or wet locations

• RoHS & FCC compliant
