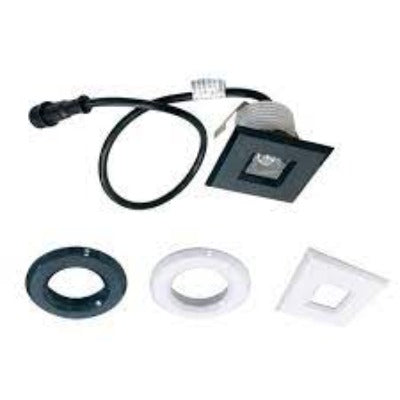

Nora NM1-170 1" M1 LED Miniature Recessed Downlight

M1 miniature recessed series features quality and convenience with easy installation for indoor applications. Luminaires include four plastic downlight trims, three optics and 6″ quick connect.

Features

• No housing required. Requires a 12VDC dimmable driver.
• Recessed Size: 1"
• Finish: Black & White Plastic Trims
• Wattage: 2W
• Voltage: 12V DC
• Color Temperature: 2700K, 3000K
• Lumens: 100
• CRI: 90+
• Triac or ELV dimming
• Easy installation for remodel or new construction applications
• Field changeable optics (spot, flood and wide)
• Threaded LED module allows for field changeable trims
• Quick disconnect allows for extended lengths
• Each fixture includes (2) black and (2) white trims in round and square

Dimensions

• Aperture: 1"
• Width: 1.63"
• Height: 1.25"

Warranty

• 5-year limited warranty.

Documents

• Spec Sheet
• Instruction Sheet

Accessories (Sold Separately):

• Driver: NM1-DVR12, NAPKED-5060HW, NAPK-524W/12, NAPK-560W/12
• Extension Cable: NM1-EXT
• New Construction Frame-In: NM1-F
• Hardwire Power Feed: NM1-HWPC/24
• Splitter Cable: NM1-TM6

• Wire Harness System: NM1-WH6

• Trims: NM1-RAEYELID, NM1-RAIHEC, NM1-RLOUV, NM1-RSS, NM1-RSSD, NM1-SSS,

Labels and Listings

• cETLus Listed for Wet Locations, cabinet and type IC
• FCC compliant
