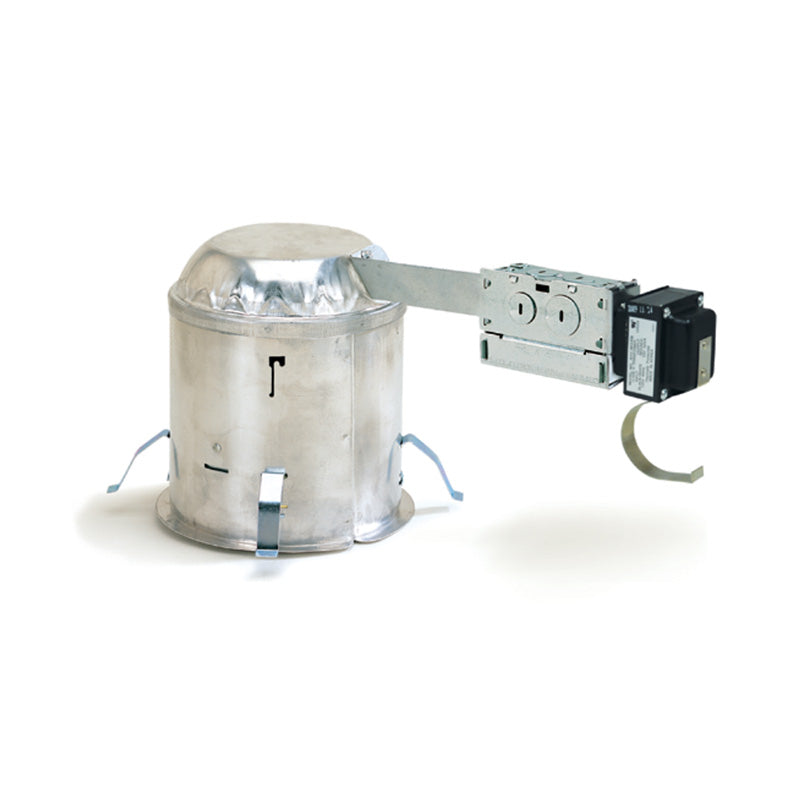

Nora NLR-604/75Q 6" Non-IC Low Voltage Remodel Housing, 120V Magnetic, 75W
SKU NLR-604/75Q
Availability:
12+ in stock, ready to be shipped
6" low voltage housings provides crisp, defined quartz halogen illumination from MR16 light sources to any application. A wide variety of attractive adjustable trims allows fine-tuned aiming of directional light sources.
Features
- Wattage: 75W max
- Socket: Bi-Pin GU5.3 socket with heat shield
- Input Voltage: 120V
- Output Voltage: 12V
- Transformer: Magnetic
- Non-IC housings require a minimum clearance of 3″ from thermal insulation and 1/2″ from adjacent building components
- Ceiling Thickness: Ceiling thickness varies from 5/8″ – 1-3/8″
- Circular bracket on low voltage trims provides a secure snap-in hold and friction-locked aiming adjustment
Compatible Retrofits (Sold Separately):

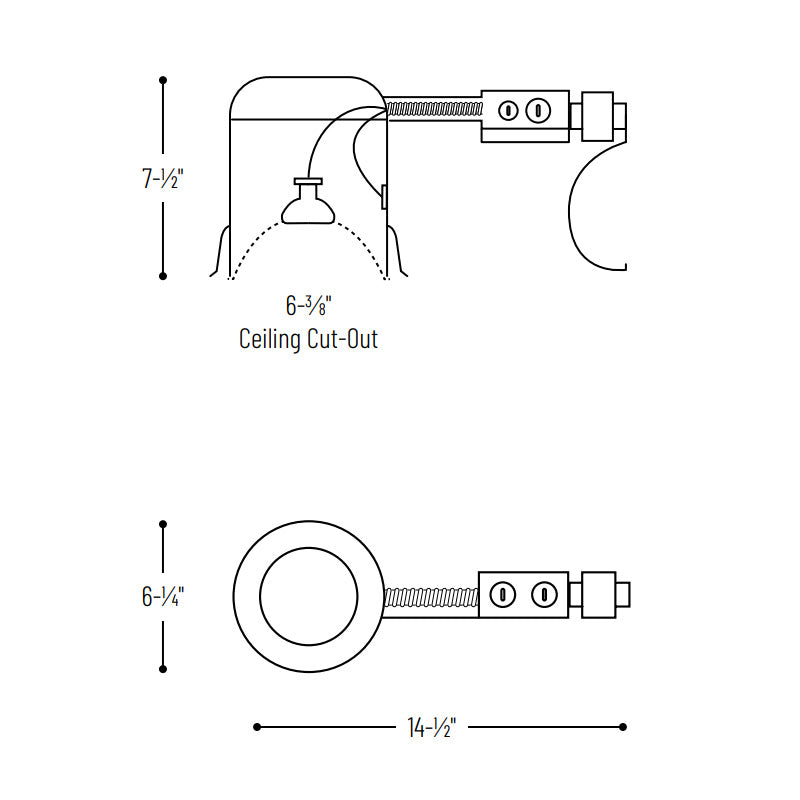

Dimensions
- Length: 14.5"
- Width: 6.25"
- Height: 7.5"
- Ceiling Cut-Out: 6.38"
Documents
Labels and Listings
- cULus Listed for Damp Location w/ Feed Through (Wet Location when used with designated trims)
