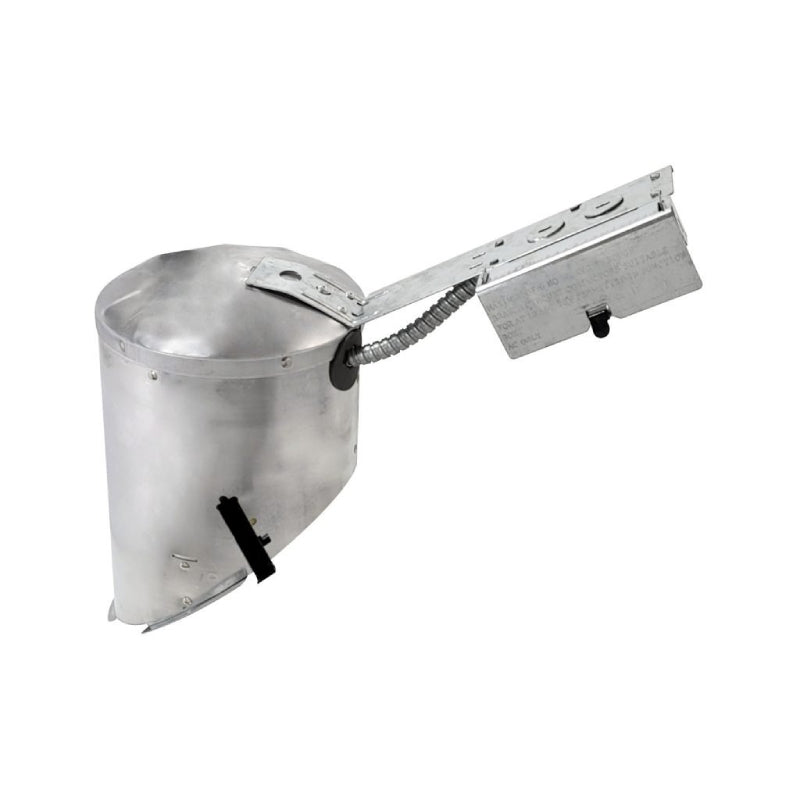

Nora NHRIC-928LMRAT 6" Super Sloped IC Air-Tight LED Dedicated Remodel Housing, 120/277V
Remodel housing for use in existing sheet rock ceilings with pitches ranging from 7/12 (30°) to 12/12 (45°). Air-tight housing additionally reduces energy costs by decreasing the flow or air escaping through the ceiling. Rated for direct contact with insulation and adjacent ceiling structures.
Compatible Luminaires (Sold Separately):
Features
- Housing only.
- Size: 6"
- Voltage: 120/277V
- Lumens: Specified by luminaire
- IC Air-Tight energy saving by reducing the flow of air through the ceiling
- Rated for direct contact with insulation
- Quick connect provided for electrical connection to the LED downlights
- Installation-ready for existing sheet rock ceilings
- Accommodates ceiling pitches from 7/12 to 12/12

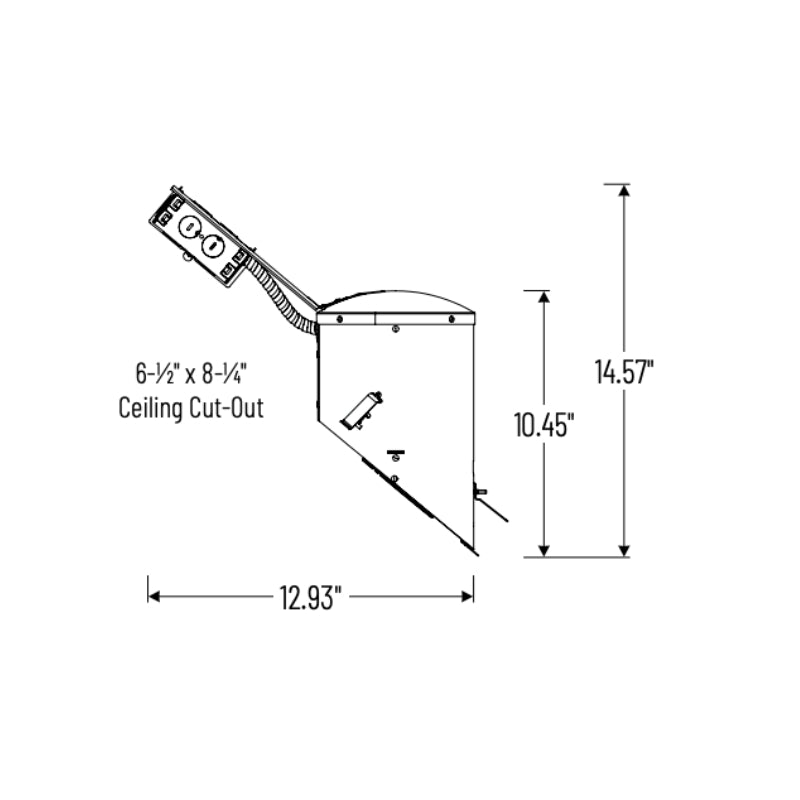

Dimensions
- Length: 12.93"
- Height: 14.57"
- Ceiling Cut-Out: 6.5" x 8.25"
Document
Labels and Listings
- cULus Listed for Damp Location w/ Feed Through (Wet Location when used with designated trims)
- Airtight in accordance to ASTM 283
- Certified to the high efficacy requirements of California Title 24 JA8-2022 (when used with compatible downlight)
