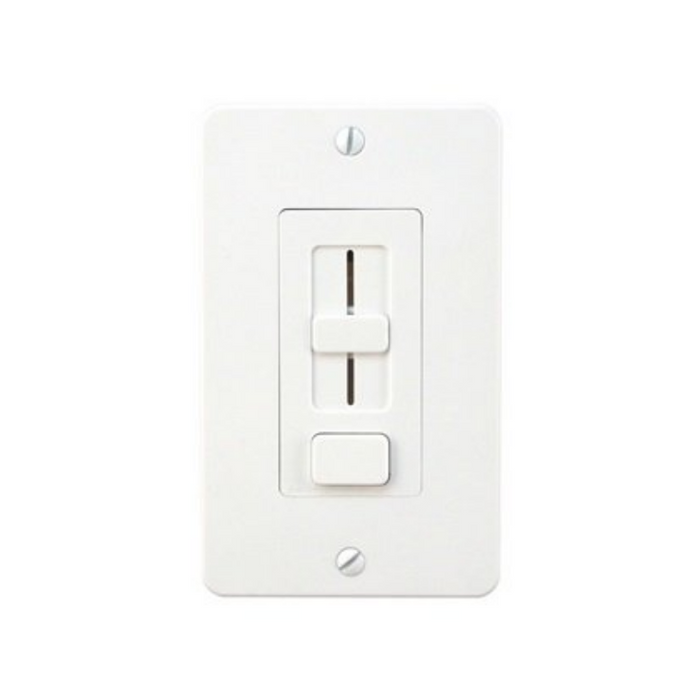

Nora NATL-SWEX60/24A NEXUS 24V 60W Dimmer+Driver Switch

NEXUS simplifies LED array lighting systems by combining an in-wall LED dimmer switch and power supply into a single integrated unit. NEXUS mounts in a standard in-wall switch box, accepts 120VAC and converts to 24V.

Features

• Face Plate: White face included, Decora switch plate not included
• Wattage: 60W
• Input Voltage: 120V
• Output Voltage: 24V
• 100% - 5% smooth dimming
• Protections: Short circuit, thermal runway, and over voltage
• First LED Driver + In-Wall Dimmer Switch in one unit
• Simplifies LED installation by eliminating compatibility issues between driver and dimmer
• Single Pole preset dimmer with on/off push switch
• Fits in a standard recessed electrical box

• No minimum load

• Adjustable voltage output dial to address voltage drop
• Includes voltage barrier partition to install high and low voltage circuit in same switch box
• No derating required when ganging units
• Power failure memory: If power is interrupted, NEXUS will return to setting prior to interruption

Compatible Fixture (Sold Separately):

• LED Tape Light: NUTP5, NUTP8 , NUTP9 , NUTP14-COB24CV16-927 , NUTP14-COB24CV16-930 , NUTP14-COB24CV16-935 , NUTP14-COB24CV16-940 , NUTP14-COB24CV100-927 , NUTP14-COB24CV100-930 , NUTP14-COB24CV100-935 , NUTP14-COB24CV100-940 , NUTP15-COB24CV16-927 , NUTP15-COB24CV16-930 , NUTP15-COB24CV16-935 , NUTP15-COB24CV16-940 , NUTP15-COB24CV100-927 , NUTP15-COB24CV100-930 , NUTP15-COB24CV100-935 , NUTP15-COB24CV100-940 , NUTP51 , NUTP71 , NUTP81

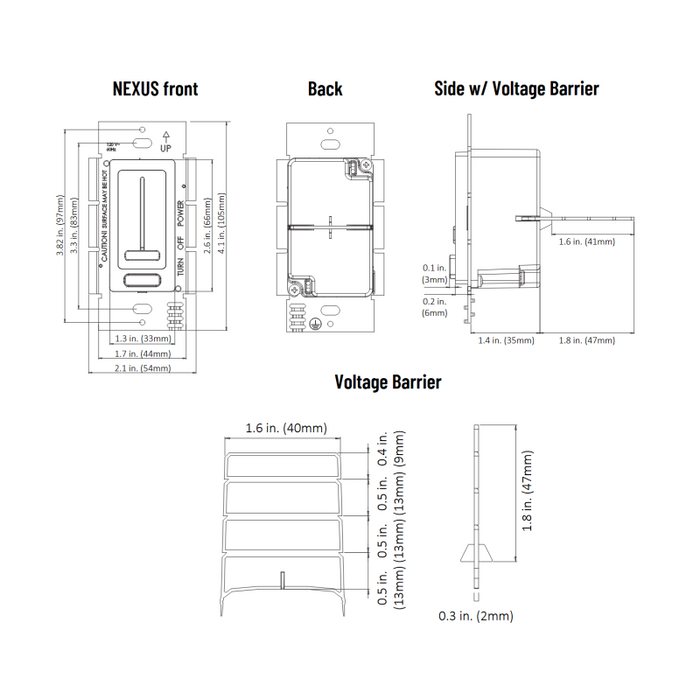

Dimensions

• Length: 4.1"
• Width: 2.1"
• Height: 1.4"

Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Listed (US & Canada) Low Voltage, Wall Recessed Power Units. #E472619
• FCC Approved. Complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules
• RoHS Certified
• CE Certified
• Conforms to NEC Code 725.136 (See Mechanical Diagram): Class 1 and Class 2 circuit in same enclosure must be separated by a barrier (partition) unless Class 2 circuit conductors are installed in accordance with 725.41 Class 1 Circuits.
