Nora NATL-SWEX100/24A NEXUS 24V 100W Dimmer+Driver Switch
SKU NATL-SWEX100/24A
Availability:
Only 5 left!

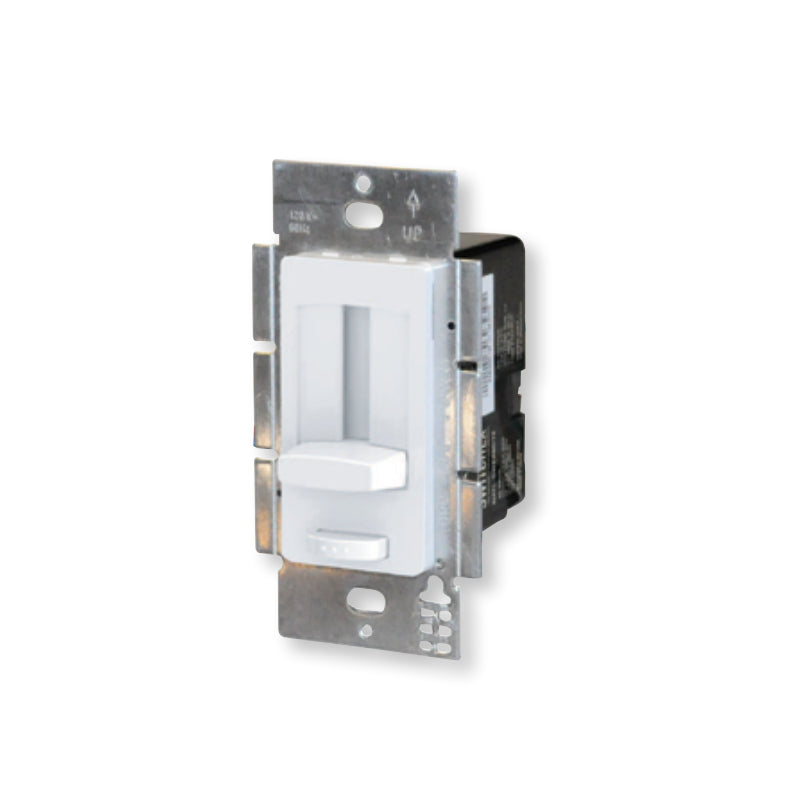

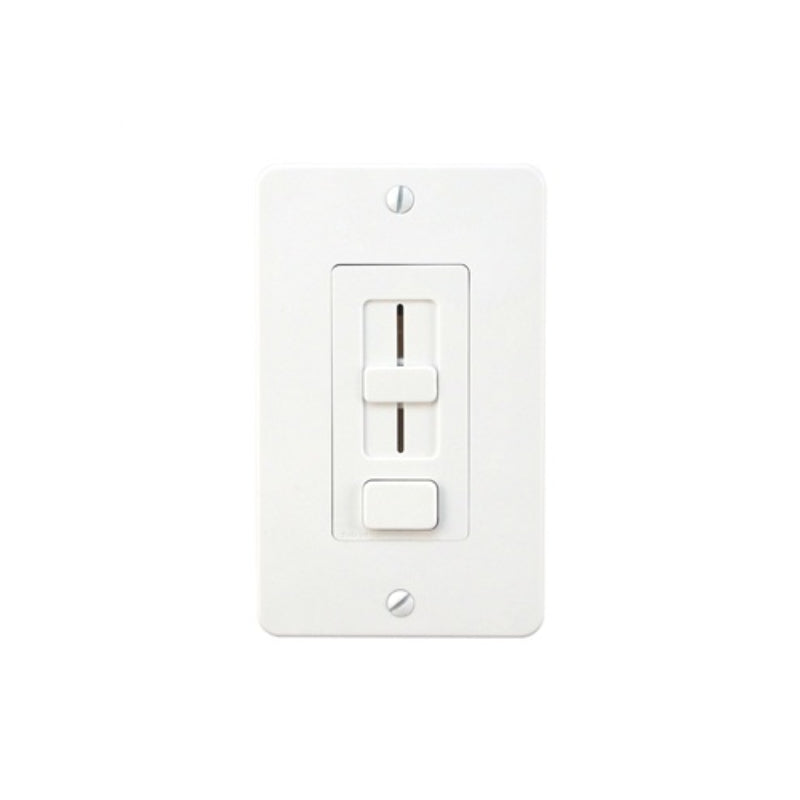

NEXUS simplifies LED array lighting systems by combining an in-wall LED dimmer switch and power supply into a single integrated unit. NEXUS mounts in a standard in-wall switch box, accepts 120VAC and converts to 24V.
Features
- Face Plate: White face included, Decora switch plate not included
- Wattage: 100W
- Input Voltage: 120V
- Output Voltage: 24V
- First LED Driver + In-Wall Dimmer Switch in one unit
- Simplifies LED installation by eliminating compatibility issues between driver and dimmer
- Fits in a standard recessed electrical box
- 100% - 5% smooth dimming
- No minimum load
- Single Pole preset dimmer with on/off push switch
- Adjustable voltage output dial to address voltage drop
- Includes voltage barrier partition to install high and low voltage circuit in same switch box
- No derating required when ganging units
- Power failure memory: If power is interrupted, NEXUS will return to setting prior to interruption

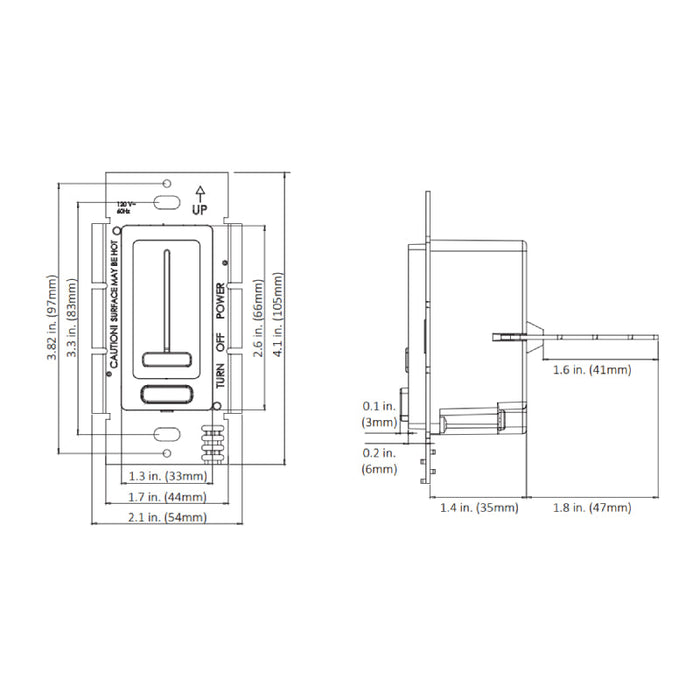

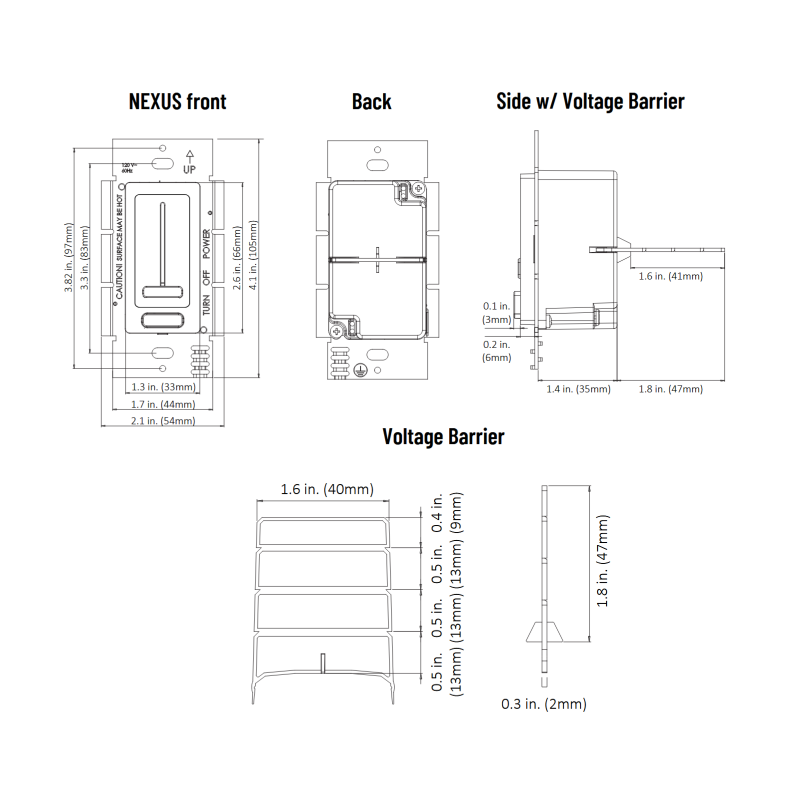

Dimensions
- Width: 2.1"
- Height: 4.1"
