Halo SMD4 4" LED Round Surface Mount Downlight, 5CCT Selectable, 120V

The HALO SMD Surface Mount Downlight combines modern style with high performance, suitable for new construction, remodel, and retrofit projects. Its sleek design remains unchanged, but the installation process is now easier thanks to a new twist and lock mounting bracket. This bracket ensures a secure, gap-free fit, providing a flawless finish. The SMD series can be installed directly to a junction box or recessed housings, making it versatile for any lighting project. Enjoy the perfect blend of style and functionality with a hassle-free installation.

Features

• Size: 4"
• Finish: Matte White
• Wattage: 7.9W
• Voltage: 120V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
• Lumens: 780
• CRI: 90+
• LE & TE phase cut 100–5% dimming
• Redesigned Mounting Bracket for faster installation
• Installs in many 3-1/2" and 4" (3O/4O) square, octagonal, or round junction boxes
• Mounting hardware, orange LED Quick Connect and E26 adapter included

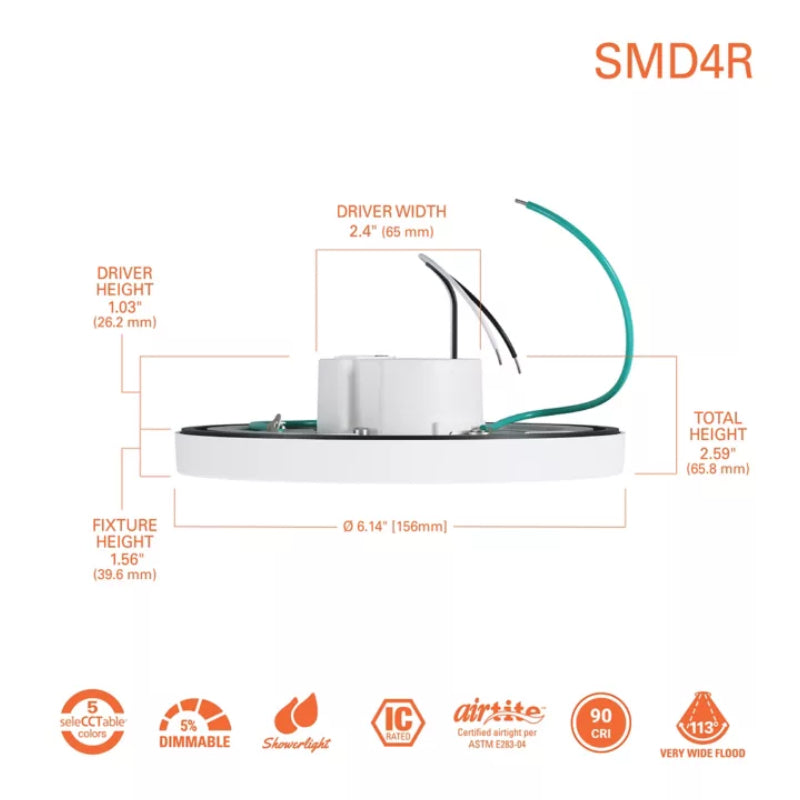

Dimensions

• Width: 6.14"
• Height: 2.59"

Estimated Life

• L70 at 50,000 hours projected in accordance with TM-21

Warranty

• 5-year limited warranty.

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus certified for US and Canada
• Wet location listed
• Airtight per ASTM-E283 (no gasket necessary)
• Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
• EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
• Contains no mercury or lead and RoHS compliant

• ENERGY STAR® certified, reference Certified Light Fixtures database

• Certified to State of California Title 20, State regulated LED Lamp; reference Modernized Appliance Efficiency Database System (MAEDBS) for State-regulate d LED Lamp
• Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2022 JA8 High Efficacy Lighting
