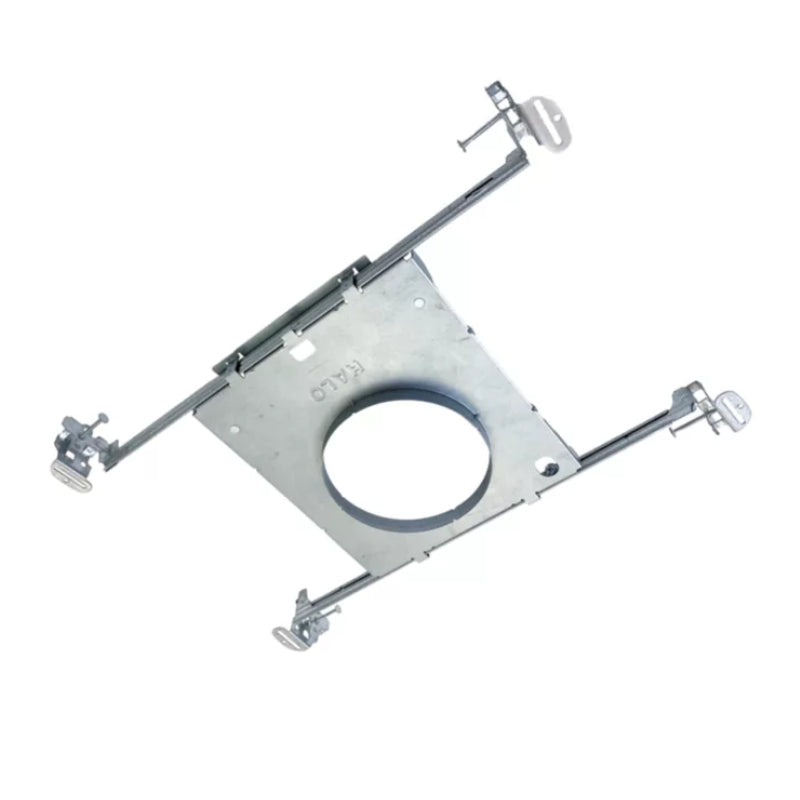

Halo MF4RC 4" Round Mounting Frame with Drywall Collar

4" & 6" New Construction Mounting Frames with 1/2" drywall collar for round canless LED downlights.

Compatible Downlights (Sold Separately):

• HLA406FL9FS1EMWR
• HLA4S06FL9FS1EMWR
• HLB4069FS1EMWR
• HLB4S069FSE010MWR
• HLB4SP069FS1EMWR
• HLBC4069FSD2W1EMW
• HLB4S069FSE010MWR
• RLS4099FS1EWHDMR
• CJB4069FS1EMW
• ML4LSFS1ERMB
• LCR4129FSE010MW
• HLBFR407FS5
• HLA406FS5

Features

• Use in New Construction/Remodeling projects where round "install from below" canless LED downlights are installed
• 1/2" collar for easier locating and cutting - notched at 90° intervals for laser centering
• Reserve the fixture's location in the ceiling with 8" to 24" wide screw-locking hanger bars

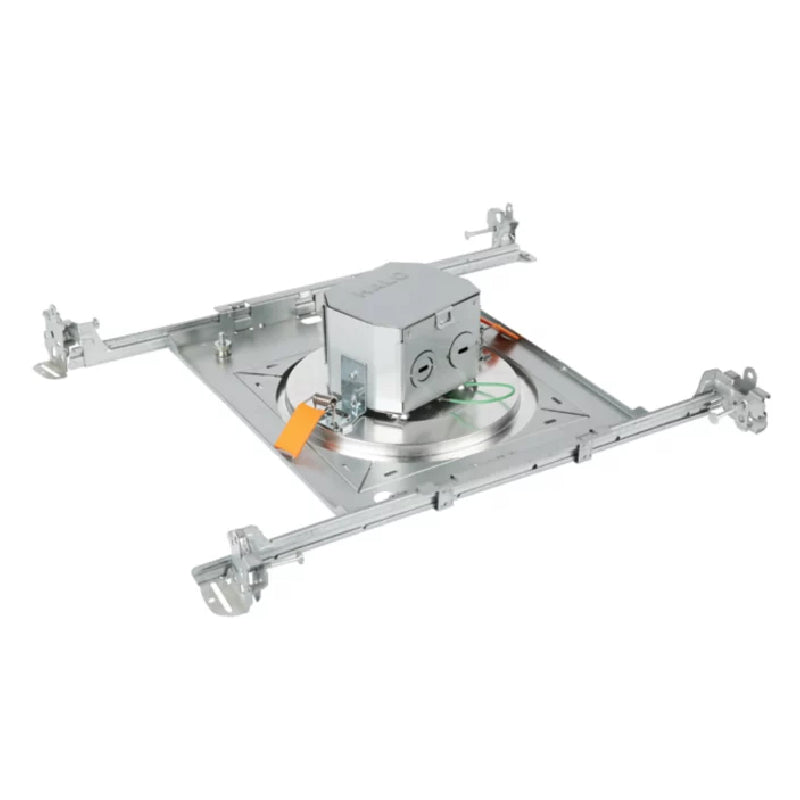

• Captive integrated thumbscrews hold HALO canless junction boxes to the frame during the rough-in phase
• Use to meet local code requirements where canless fixtures need to be supported by building structure

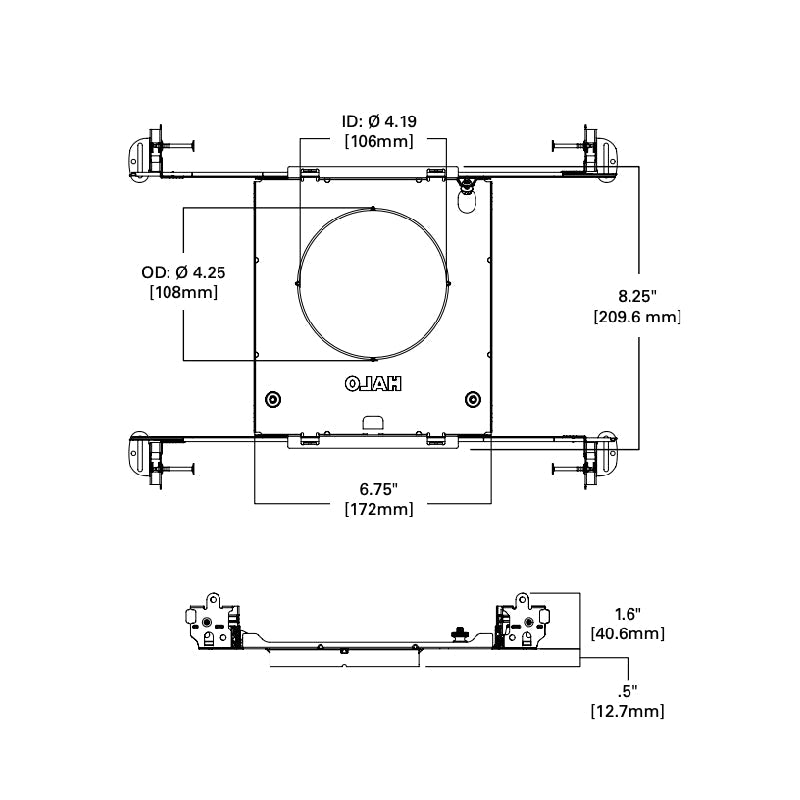

Dimensions

• Width: 8.25"
• Height: 1.6"

Documents

• Spec Sheet
• Instruction Sheet
