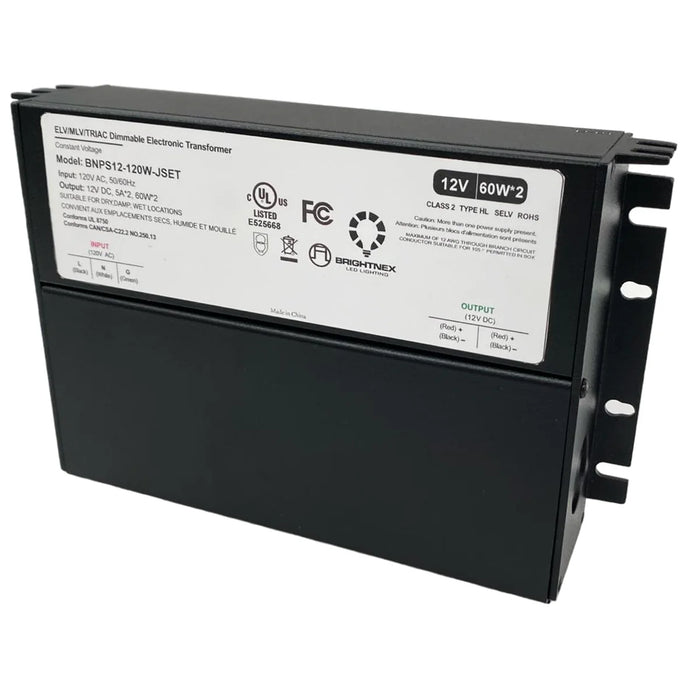

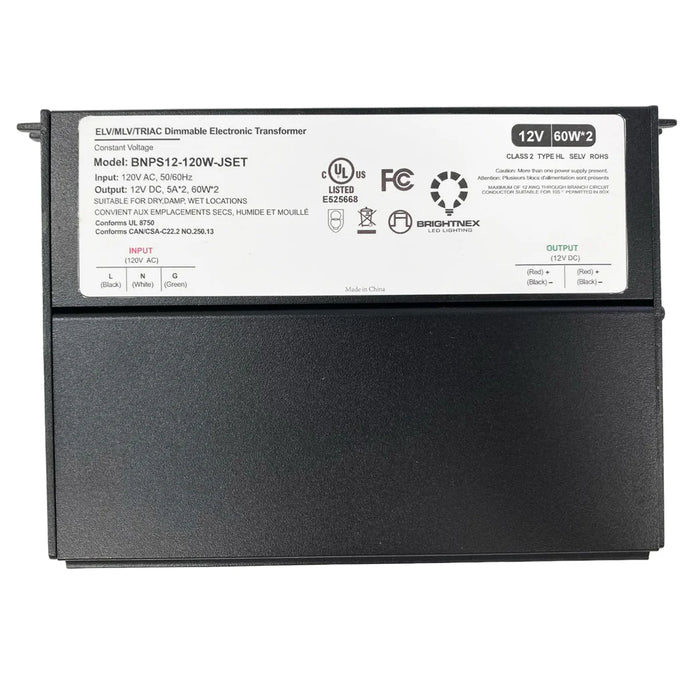

Brightnex BNPS12-120W-JSET 12V 120W Dimmable LED Transformer | Dual Output | TRIAC/ELV/MLV | UL Class 2 | Wet Location Rated

This 12V 120W dimmable constant voltage LED transformer features dual output channels (60W × 2) and supports full-range 0–100% dimming via TRIAC, ELV, or MLV dimmers. It is built for LED lighting systems requiring a compact, reliable, and safe Class 2 power source.

Housed in a durable aluminum case rated for dry, damp, and wet locations, it includes short-circuit and overload protection, and operates efficiently from 20% to 100% load. The transformer integrates easily into commercial and residential lighting projects, offering stable output and excellent dimmer compatibility.

Features

• Output Voltage: 12V DC
• Output Power: 120W (2 × 60W channels)
• Output Current: 5.0A × 2
• Input Voltage: 120V AC
• Frequency: 47–63Hz
• Efficiency: 88% @ full load
• Power Factor: 0.98 typical @ 120V
• THD: < 20% @ 100% load
• Voltage Tolerance: ±0.5V
• Load Regulation: ±1%
• Leakage Current: < 0.5mA @ 120V
• Load Range: Operates from 20–100%
• Certifications: UL8750, FCC, Class 2, Type HL, RoHS
• Enclosure Rating: Dry, Damp, and Wet Location (Not for Submersion)
• Operating Temp: -40°F to +140°F (-40°C to +60°C)

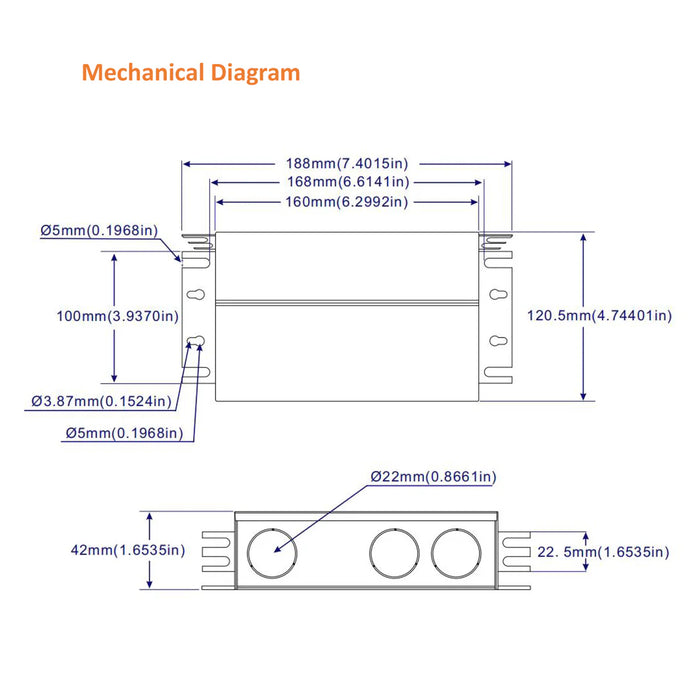

• Dimensions: 7.40" × 4.74" × 1.65" (L × W × H)
• Weight: 1.76 lbs (0.8 kg)

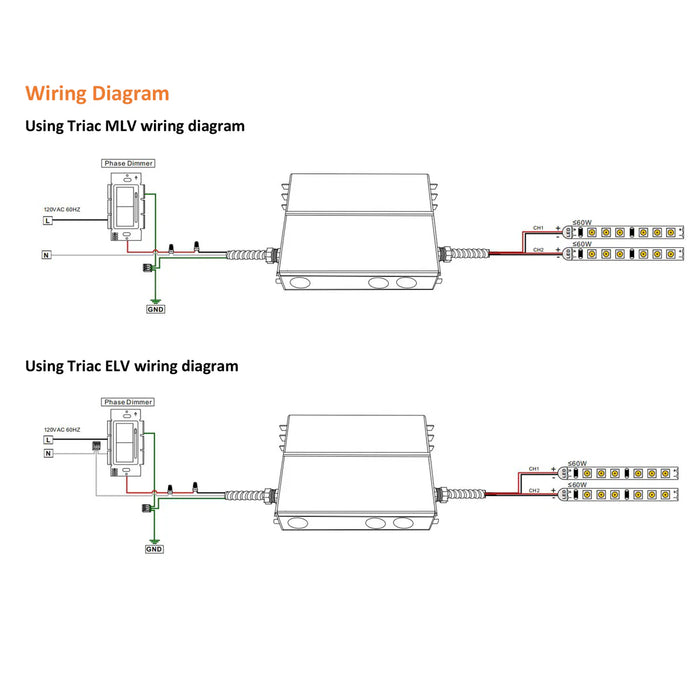

Dimming Compatibility:

• Dimming Range: 0–100%
• Dimming Types Supported:
  • TRIAC (Leading Edge)
  • ELV (Trailing Edge)
  • MLV (Magnetic Low Voltage)
• Compatible Dimmer Brands:
  • Lutron Diva, CL, Caseta
  • Leviton Decora, SureSlide
• Stable Operation Range: 20%–100%
