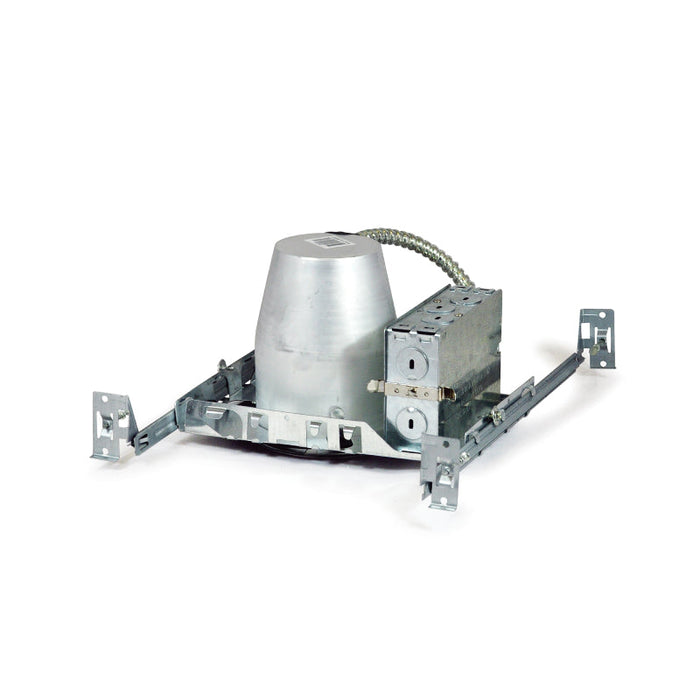

Nora NHIC-4LMRAT 4" IC Air-Tight LED Dedicated New Construction Housing

Compatible Retrofit (Sold Separately):

• NPR-4RC
• NPR-4RCCDX
• NPR-4RG
• NPR-4RGCDX
• NPR-4RNB
• NPR-4RNBCDX
• NPR-4RNDC
• NPR-4RNDCCDX
• NPR-4RPH
• NPR-4RPHCDX
• NCSR-R41TW
• NOXAC-431 (700lm)
• NOXAC-431 (1000lm)
• NOXAC-431TW
• NOXAC-432 (700lm)
• NOXAC-432 (1000lm)
• NOXAC-432TW
• NOXAC-436
• NOXAC-4RGTW
• NOXAC-4RWTW
• NOXAC-4SWTW

Features

• "IC" Housings are direct contact rated; no minimum clearance is required
• Housing adjusts from 3/8" to 7/8"
• Bar hangers are adjustable from 13-3/4" to 24-1/2" and can be repositioned 90º
• Junction box is listed for through branch circuit wiring and contains five 1/2", two 3/4" knockouts, and four ROMEX® pryouts with strain relief
• 90 minute battery back-up must be ordered and installed as a self contained kit set apart from the housing
• Quick Connector provided

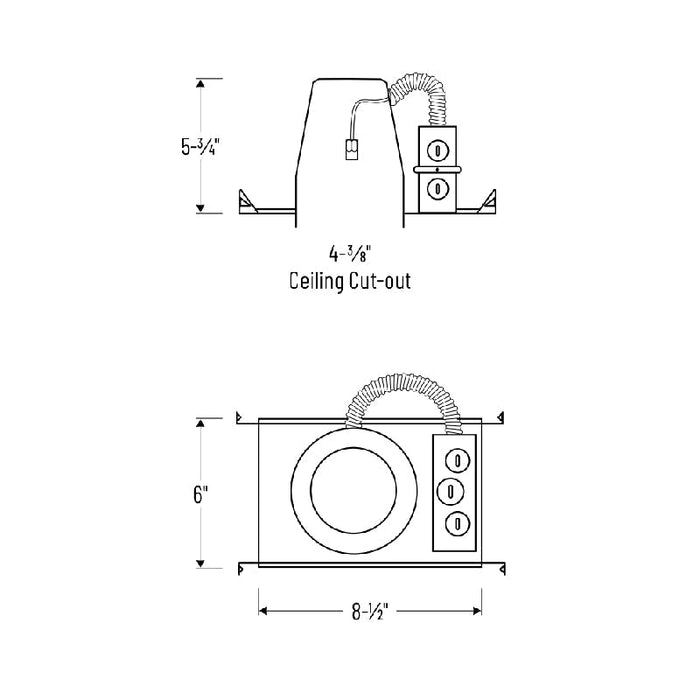

Dimensions

• Length: 8.5"
• Width: 6"
• Height: 5.75"
• Ceiling Cut-out: 4.38"

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Listed for Damp Location (wet location when used with compatible downlight)
• Airtight in accordance to ASTM 283
• Certified to the high efficacy requirements of California Title 24 JA8-2022 (when used with compatible downlight)
• RoHS compliant
