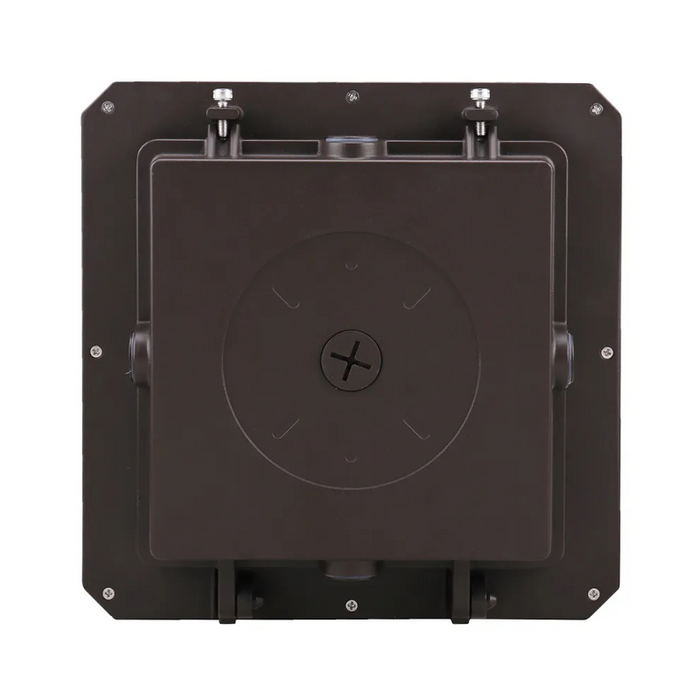

Westgate CAX 20W/30W/45W LED Canopy Light

Features

• Wattage: 20W / 30W / 45W Selectable

• Voltage: 120-277V
• Color Temperature: 3000K / 4000K / 5000K Selectable
• Lumens: 2800 / 4200 / 6300

• CRI: 80+

• Beam Angle: 150°
• Dimming: 0-10V dimmable

• Power & CCT Selectable Switch Located On The Housing
• Housing: Die-cast aluminum with prismatic polycarbonate lens redesigned for LED
• Four 1/2??threaded hubs located on four sides of the housing
• Sensor-Ready: 3-Pin Socket Pre-Installed
• IP 65 rated

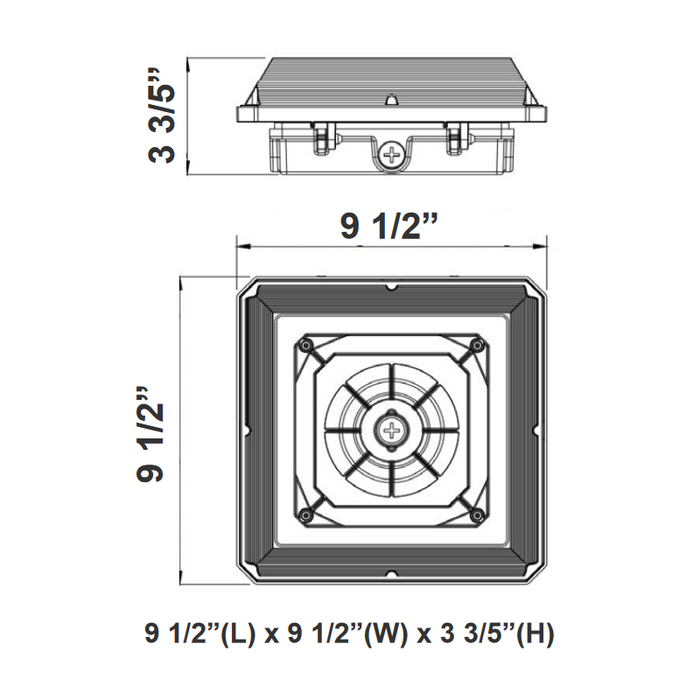

Dimensions

• Length: 9.5"
• Width: 9.5"

• Height: 3.6"

Estimated Life

• 70,000 hours

Warranty

• 7-Year Warranty

Documents

• Spec Sheetï»?/strong>ï»?/strong>
• Instruction Sheetï»?/strong>ï»?/strong>
• Photometry & Revit (BIM)
• CAX-20 .IESï»?/strong>
