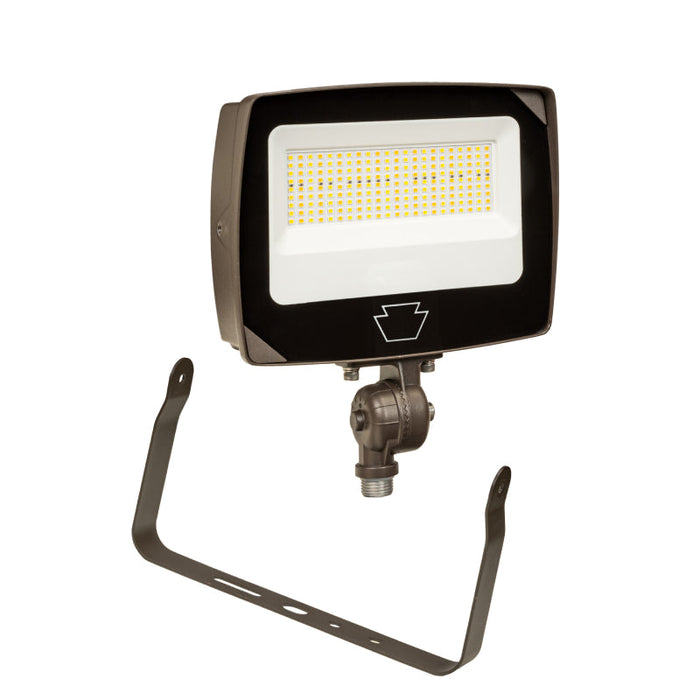

Keystone KT-FLED15PS-R4A 9W/12W/15W LED Flood Light, 3CCT & 3 Wattage Selectable, knuckle & yoke mounts, Up to 2250 lm, 120-277V

Features

• Finish: Bronze, White
• Mounting: knuckle and yoke mounts included
• Wattage: 9W/12W/15W Selectable
• Voltage: 120-277V
• Color Temperature: 3000K/4000K/5000K Selectable
• Lumen: up to 2250
• CRI: 80+
• Dimming: 0-10V
• Heavy-duty, die-cast aluminum housing

• Built-in dusk-to-dawn photocell under 3/4" knockout with anti-yellowing agent

• NEMA 7H x 7V wide floodlight distribution
• Keystone 0-10V dimming driver with 2.5kV surge protection (6kV surge protection on 100W fixture)

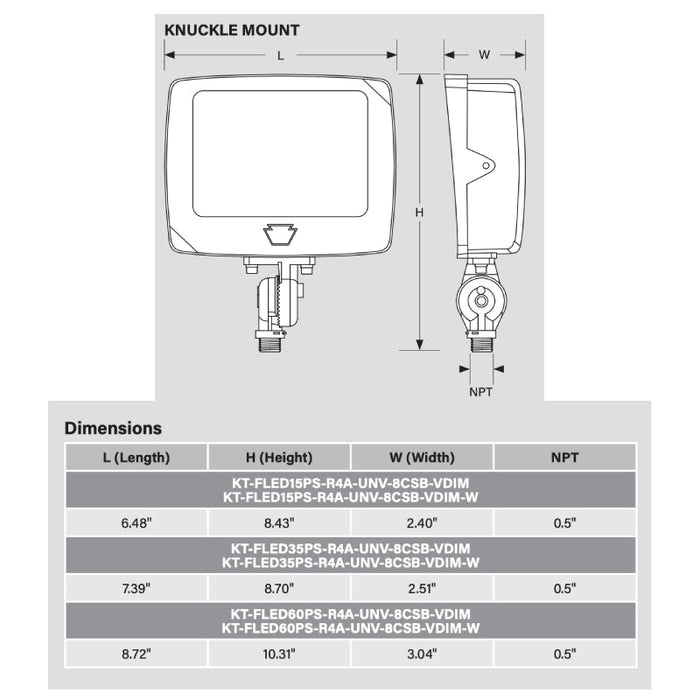

Dimensions

• Width: 6.48"
• Height: 8.43"
• Depth: 2.4"
• Weight: 2.25 lbs

Estimated Life

• LED chip lifetime: L70 > 100,000 hrs @ 25°C/77°F ambient fixture temperature

Warranty

• 10 year warranty

Documents

• Spec Sheet
• Instruction Sheet
