Nora NYUD-3 3" 35W LED Up & Down Wall Mount Cylinder, 3000 lm, 3CCT Selectable

Architectural grade ADA Compliant up-and-down wall mount cylinder with dedicated LED attached to a deep cone reflector for optimal visual comfort. This minimalist yet versatile design can be changed to single direction or up & downlight. Cylinders also include a selectable CCT switch located on the cover plate.

Features

• Finish: Black, Bronze, White

• Wattage: 35W
• Voltage: 120-277V

• Color Temperature: 3000K/4000K/5000K
• Lumens: 3000 (1500lm per side)
• CRI: 90+

• Dimming: 0-10V
• Beam Spread: 31° Narrow Flood
• Mounting: Cylinder is supplied with hardware to mount directly over junction box
• Extruded aluminum cylinder body
• Die-cast aluminum canopy
• Silicone sealed glass lens in gasketed end caps ensure fixture is watertight
• 3 Step SDCM

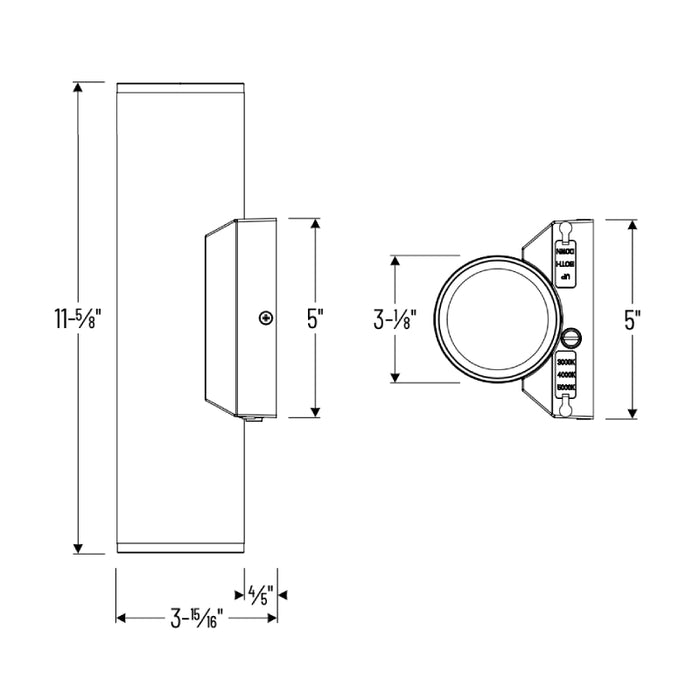

Dimensions

• Diameter: 3.13"
• Height: 11.63"
• Extension: 3.94"
• Canopy: 5"

Warranty

• 5-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cETLus Listed for Outdoor Wet Locations
• IP65 rated
• RoHS Compliant
• Certified to the high efficacy requirements of California Title 24 JA8-2025
