Nora NPDBLSW-E14 1x4 LED Backlit Panel, 3CCT Selectable, 120-347V

LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired.

Features

• Size: 1 x 4
• Finish: White
• Wattage: 20W / 25W / 30W
• Voltage: 120-347V

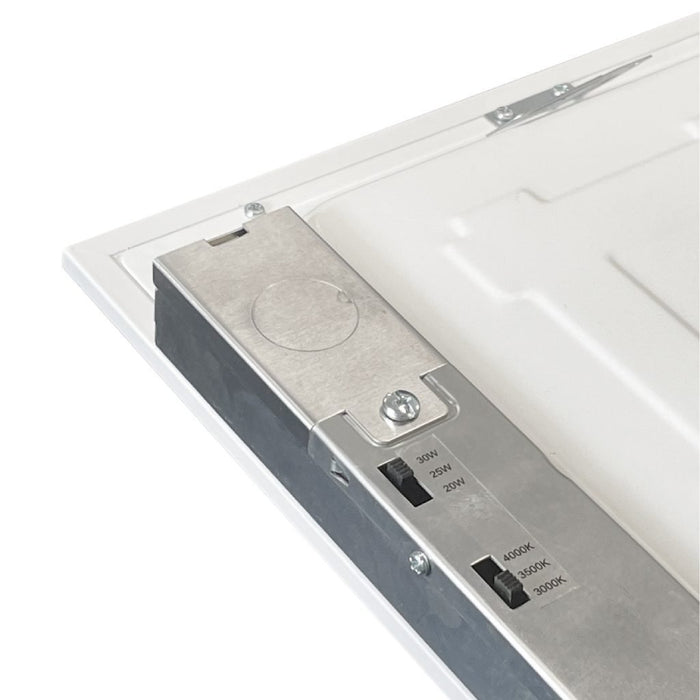

• Color Temperature: 3000K / 3500K / 4000K Selectable
• Lumens: 2634 / 3115 / 3678
• CRI: 80+
• Dimming: 0-10V dimming
• Construction: An array of LEDs are mounted on the back of aluminum frame. White opalescent diffused lens optimizes output while reducing LED diode image
• Lens: PMMA (Polymethyl methacrylate) lens is lightweight and shatter resistant
• Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation
• Installation: The luminaire fits into standard 15/16” and narrow 9/16” T-grid ceiling systems. Wiring compartment is on the back of panel and includes replaceable driver, which is accessible via a service door secured with two screws

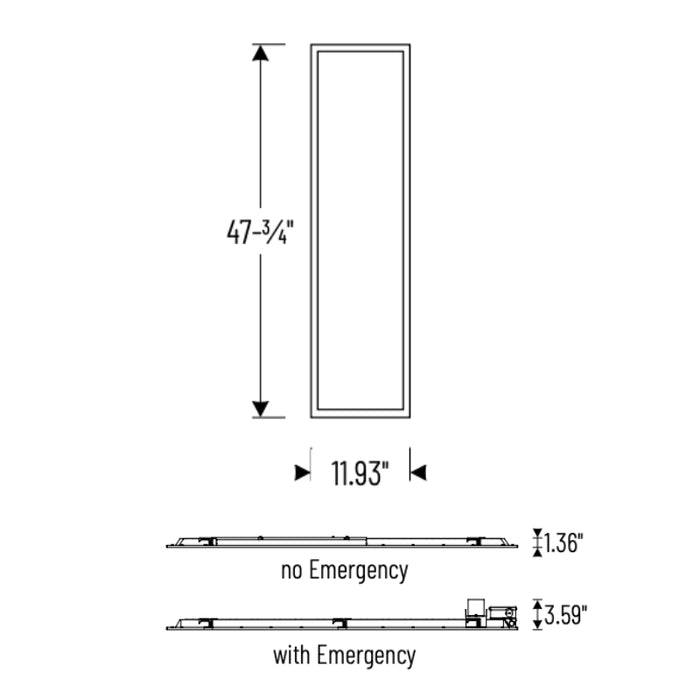

Dimensions

• Length: 47.75"
• Width: 11.93"
• Height: 1.36"

Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet

Accessories  (Sold Separately):

• Surface Mounting Frame: NPDBL-14DFK
• Pendant Mounting Kit: NPDBL-PKW
• Recessed Mounting Kit: NPDBL-14RFK
• 4" Junction Box: NPDBL-JB4X4

Labels and Listings

• cULus Listed for Damp Locations
• DLC Listed
• FCC certified
• RoHS compliant
