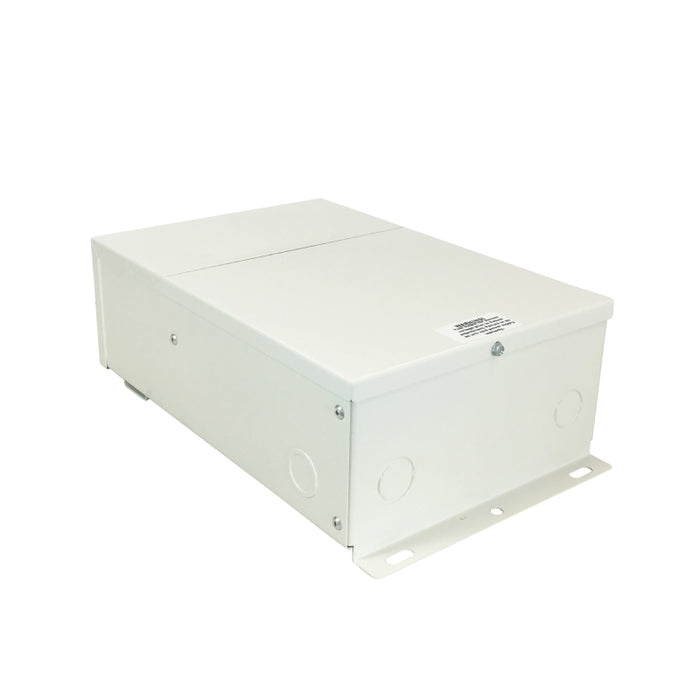

Nora NMT-303/24C2D1 120V/24V 300W Class 2 Dimmable Hardwire Magnetic Driver

24V enclosed dimmable driver to be used with Nora Lighting’s 24 Volt systems. Three breakers each produce 100 watts and can be dimmed with low voltage magnetic dimmer. Includes a regulator to provide constant current and constant voltage.

Features

• Wattage: 3 x 100W
• Input Voltage: 120V
• Output Voltage: 24VDC, 4A per circuit max
• Dimming: Magnetic Low Voltage
• Regulator: Constant Current and Constant Voltage
• Knockouts: Four Knockouts
• Power Line Connector: Not included, 10' or 30' Power Line Connectors ordered
• Circuit Breaker: Manual reset overload protection for each Class 2 circuit separately

Compatible Fixture  (Sold Separately):

• NMP2-A
• NMP2-LED

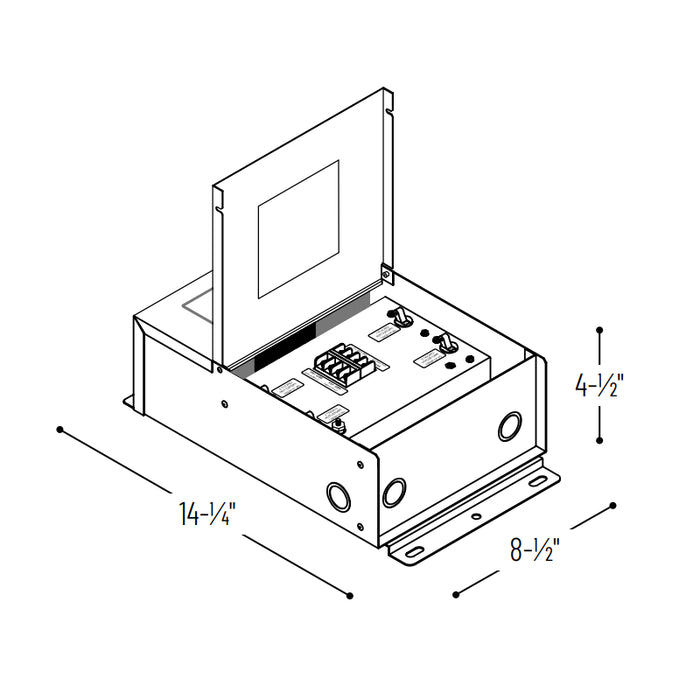

Dimensions

• Length: 14.25"
• Width: 8.5"
• Height: 4.5"

Documents

• Spec Sheet

Accessories  (Sold Separately):

• NALTL-10
• NALTL-30
• NATL-302W

Labels and Listings

• UL Recognized
