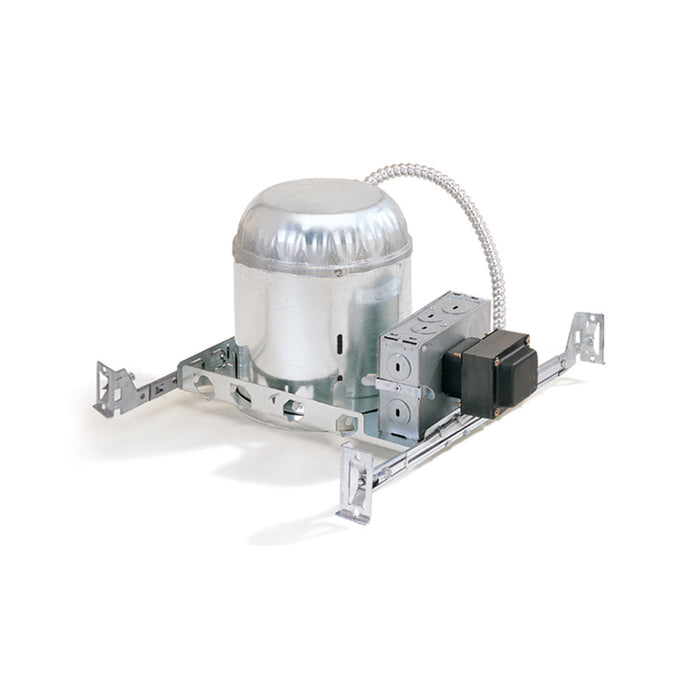

Nora NL-601Q 6" Non-IC Air-Tight Low Voltage New Construction Housing, 120V Magnetic, 50W

Nora Lighting’s series of 6" low voltage housings provides crisp, defined quartz halogen illumination from MR16, AR111 or PAR36 light sources to any application. A wide variety of attractive adjustable trims allows fine-tuned aiming of directional light sources.

Features

• Wattage: 50W max
• Socket: Bi-Pin GU5.3 socket with heat shield
• Input Voltage: 120V
• Output Voltage: 12V
• Transformer: Magnetic
• Non-IC housings require a minimum clearance of 3″ from thermal insulation and 1/2″ from adjacent building components
• Ceiling Thickness: Ceiling thickness varies from 5/8″ – 1-3/8″
• Circular bracket on low voltage trims provides a secure snap-in hold and friction-locked aiming adjustment

Compatible Retrofits (Sold Separately):

• NPRLV-56RNDC
• NPRLV-56RNDCCDX

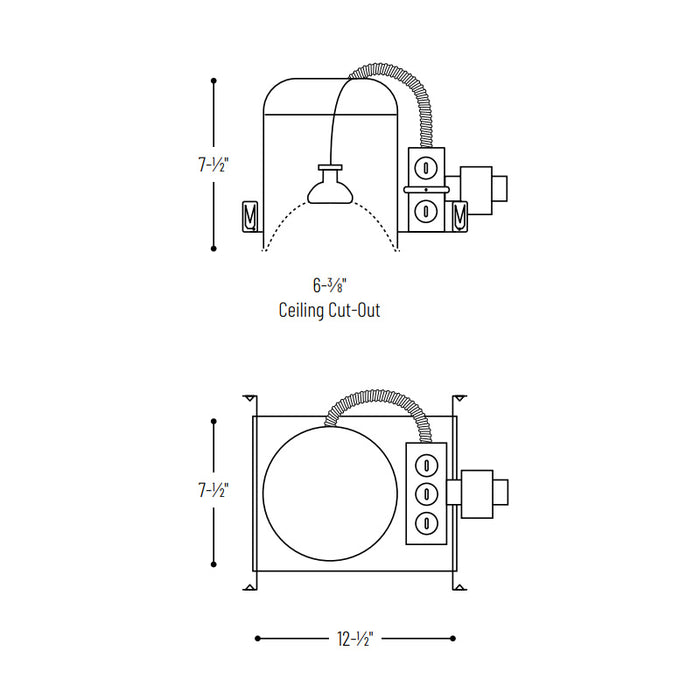

Dimensions

• Length: 12.5"
• Width: 7.5"

• Height: 7.5"
• Ceiling Cut-Out: 6.38"

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Listed for Damp Location w/ Feed Through (Wet Location when used with designated trims)
• Meets or exceeds ASTM-283 Air-Tight Requirements
