Nora NELOCAC-8RP 8" 18W ELO+ LED Surface Mount, 1100 Lumens, 120V

8″ ELO luminaires are a thin 1/2″ surface mounted luminaire. Luminaire mounts easily over a standard or fire rated junction boxes. Luminaires can be used to retrofit recessed housings with retrofit kit accessory.

Features

• Recessed Size: 8"
• Finish: White
• Wattage: 18W
• Voltage: 120V
• Color Temperature: 3000K, 3500K, 5000K
• Lumens: 1100
• CRI: 90+
• Dimming: Triac (Leading Edge) or ELV (Trailing Edge
• Construction: Surface mounted luminaire includes integral driver

• Mounting: Steel bracket can be used to surface mount on junction box. Optional torsion springs are available for retrofitting 5" or 6" recessed housings

• Retrofit: Each luminaire includes a retrofit kit with medium base socket adapter to mount over 5" or 6" recessed housings. Kit also includes torsion spring brackets that hold luminaire flush against ceiling. Retrofit kit is intended to be used with a lighting fixture as a lamp replacement.

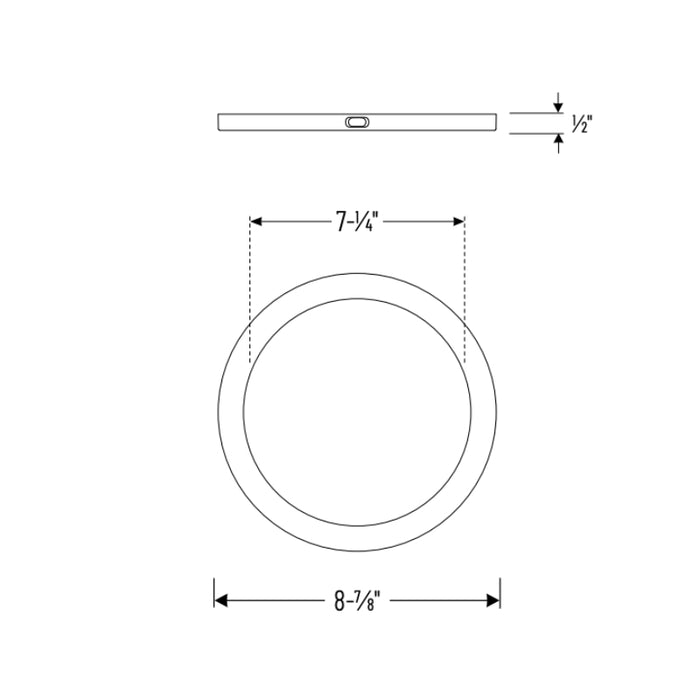

Dimensions

• Diameter: 8.88"
• Height: 0.5"


Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet

Accessories (Sold Separately):

• Decorative Metal Ring: NLOCAC-8R
• Retrofit Kit: NLOCAC-6811RECKIT

Labels and Listings

• cETLus Listed for Damp Locations
• cETLus classified for retrofit
• FCC certified
• Certified to the high efficacy requirements of California Title 24 JA8-2025
• Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1)
