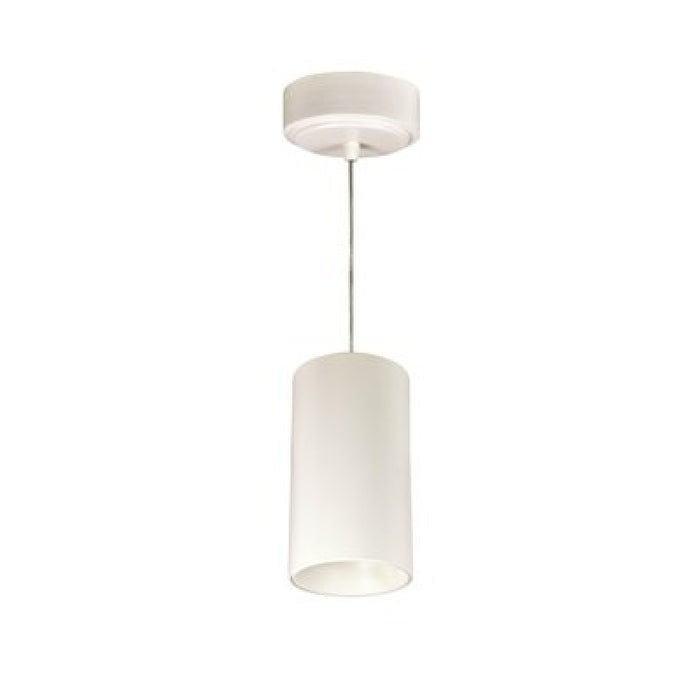

NYLM-3C iLENE 3" Mini Cylinder LED Pendant, 120/277V, 3000K, White Finish

Cylindrical pendant mounted LED fixture. Deep set optics in a reflector cone for optimal visual comfort. Uses Cree LED platform with a dedicated heat sink driven by a Cree supported outboard driver mounted in canopy for cool operation and extended life.

Features

• Size: 3 inches
• Finish: White

• Wattage: 25W
• Voltage: 120V/277V

• Color Temperature: 3000K
• Lumens: 1500
• CRI: 90+
• Dimmable: 120V Triac or 0-10V & 277V 0-10V dimming

• Includes Flood (installed), narrow flood and spot field changeable reflectors
• Extruded aluminum cylinder with aluminum vented top
• Includes 8’ of field adjustable coax cable

Dimensions

• Width: 3.75"
• Height: 6.75"
• Field Adjustable: 8.5"

Documents

• Spec Sheet
• Instruction Sheet
