por NICOR Lighting

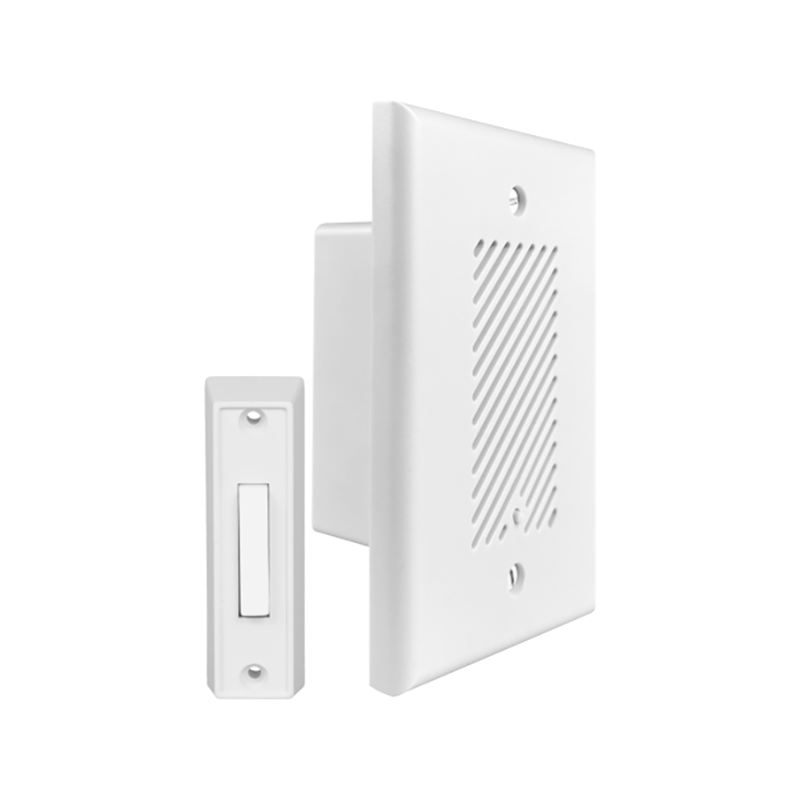

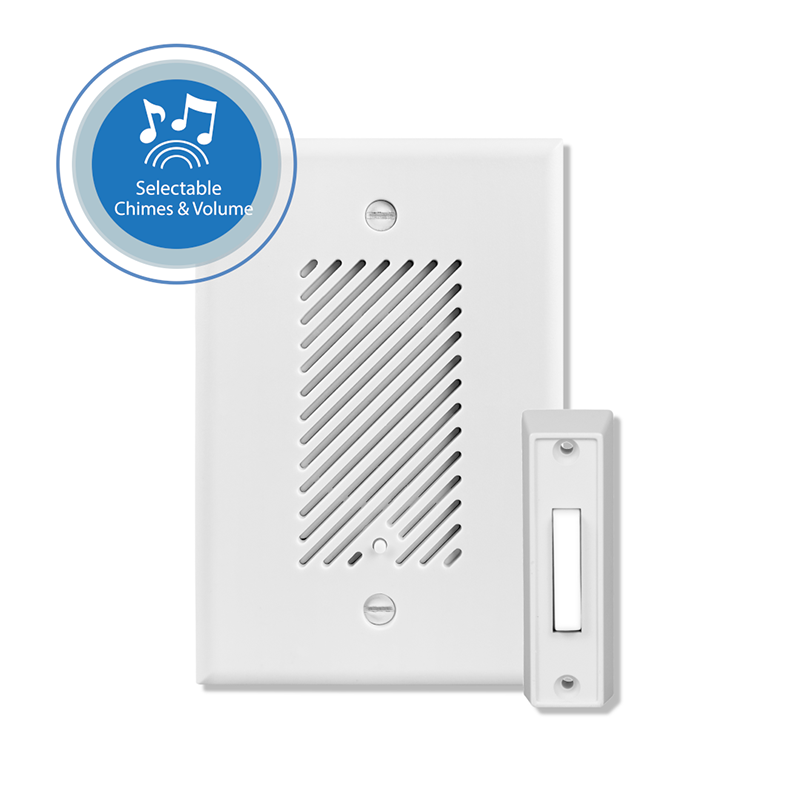

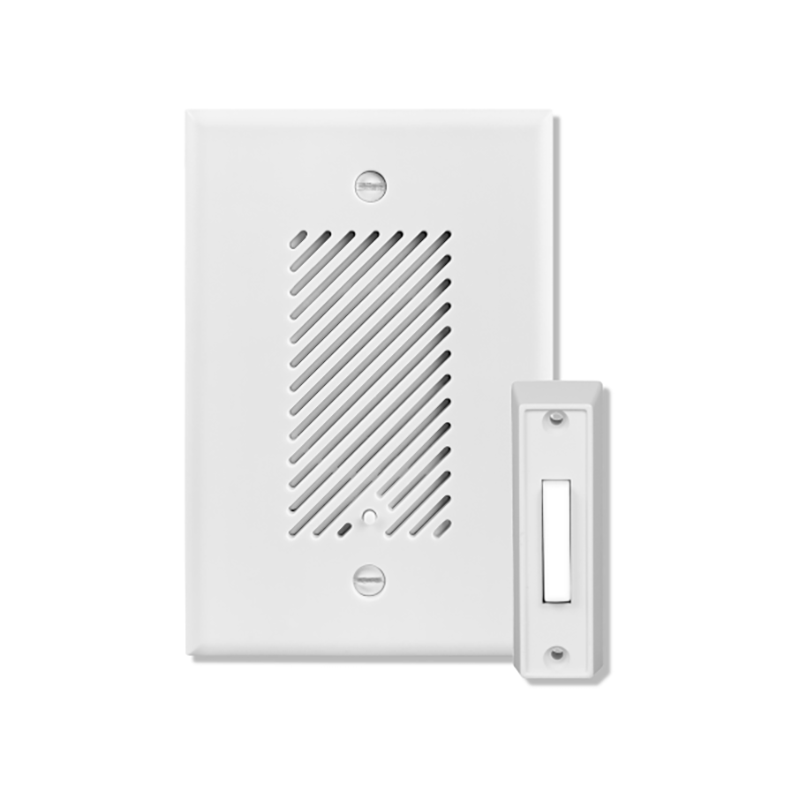

NICOR EDC1 Single-Gang Electronic Door Chime Kit with Lighted Button
SKU EDC1120WH1
Disponibilidad:
Agotado
Agotado
Login or Sign Up to View Price

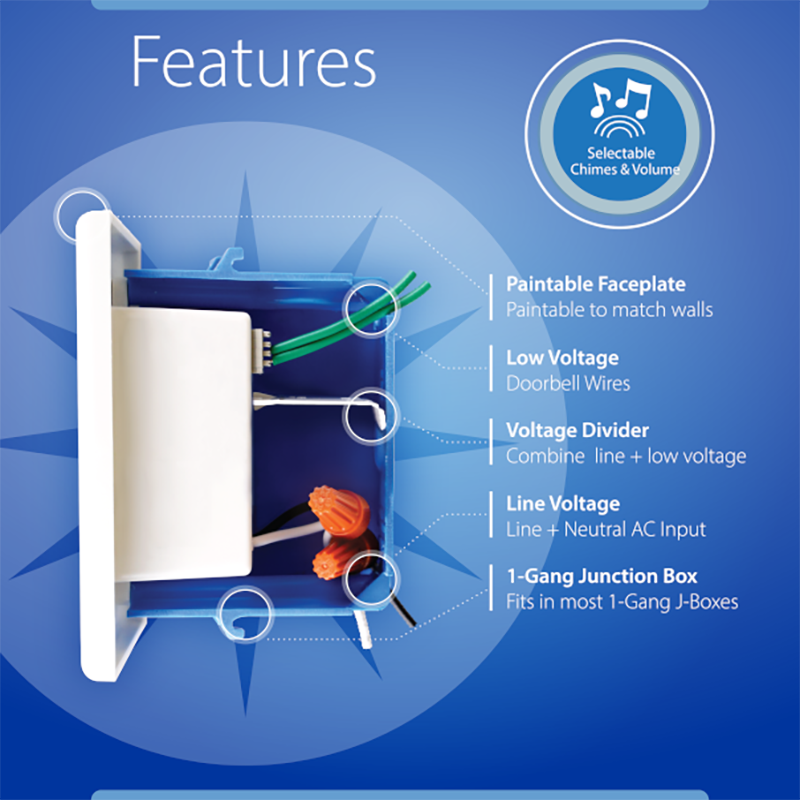

The Electronic Door Chime (EDC) is a doorbell chime kit that can be installed in new construction homes or retrofitted in existing homes. It uniquely features a door chime that fits in most non-metallic single-gang junction boxes and combines both line and low voltage in one unit.
Features
- Finish: Matte White
- Integrated transformerÂ
- Input: 120VAC/60Hz
- Output: 5VDC, Max 2W
- Digital control board with speaker
- Daisy chain up to 4 EDC units (Each chime requires individual 120VAC input)
- Five selectable chime tones : Ding Dong, Westminster, 3 note, 5 note, and 7 note
- Five selectable chime tone volumes
- Voice guided setup during selection
- Installs quickly into most non-metallic single-gang junction boxes
- Includes one lighted rectangle doorbell button
- Doorbell buttons connect with 18ga-22ga solid wire (max 100ft distance)

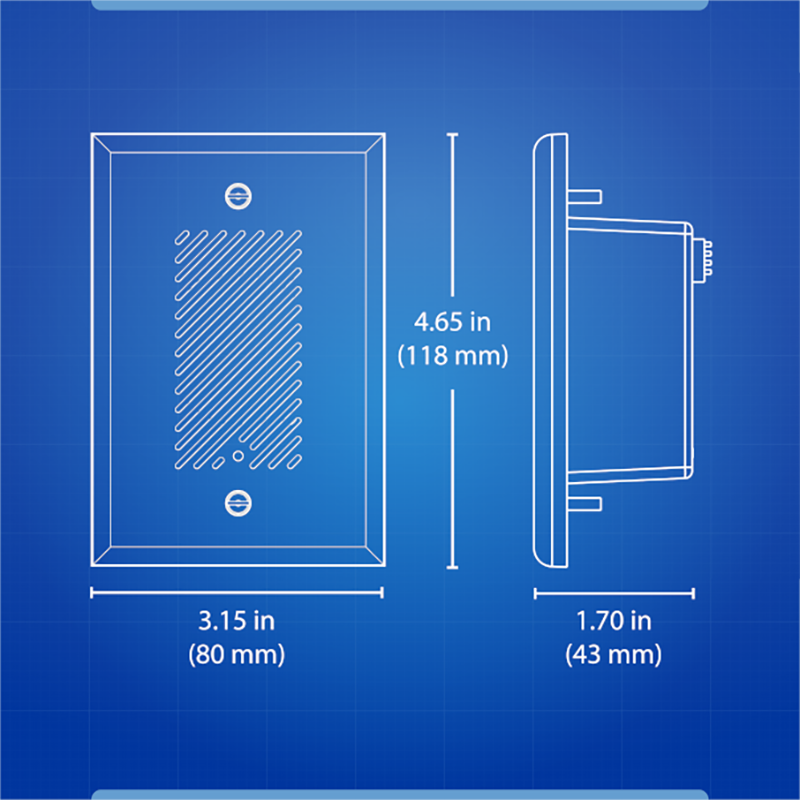

Dimensions
- Width: 3.15"
- Height: 4.65"
- Depth: 1.7"
Warranty
- 1-year limited system warranty
