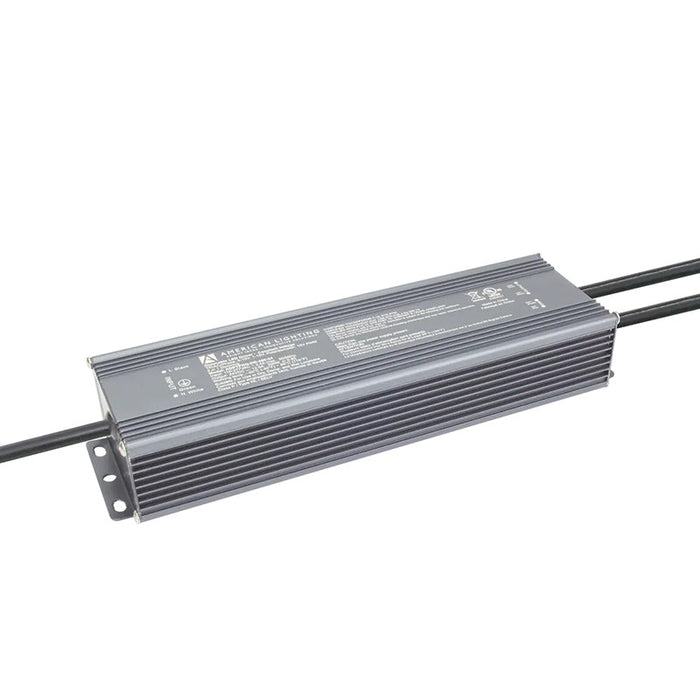

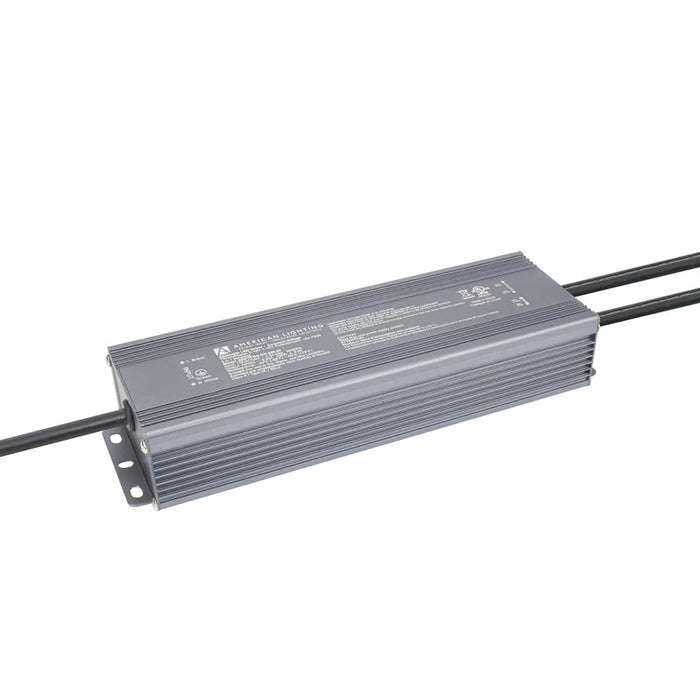

American Lighting Adaptive PRO Driver 24V DC

The Adaptive Pro 5-in-1 dimmable drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a sealed low profile aluminum enclosure Suitable for outdoor locations.

Compatible Tape Lights (Sold Separately):

• SFLEX-SW Senik Flex Static White Tape Light

Features

• Finish: Black
• Wattage/Rated Current:
  • 200W, 8.33A
  • 300W, 12.5A
• Input Voltage: 100-277V AC
• Output Voltage: 24V DC
• 5-in-1 Forward and Reverse Phase Dimming:
  ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer
• Class I metal housing (Type HL)
• 8??(SJTW) Lead & Tail Wire
• Short circuit, over-load, and over temperature protections

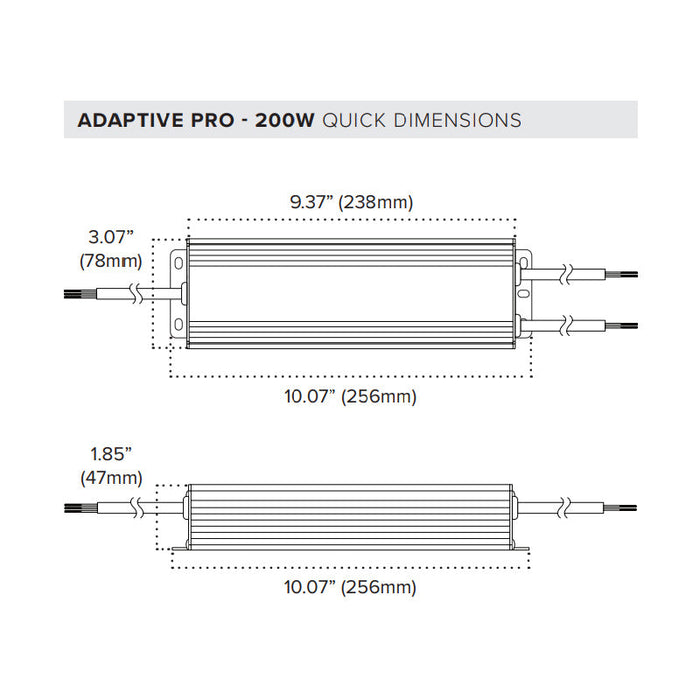

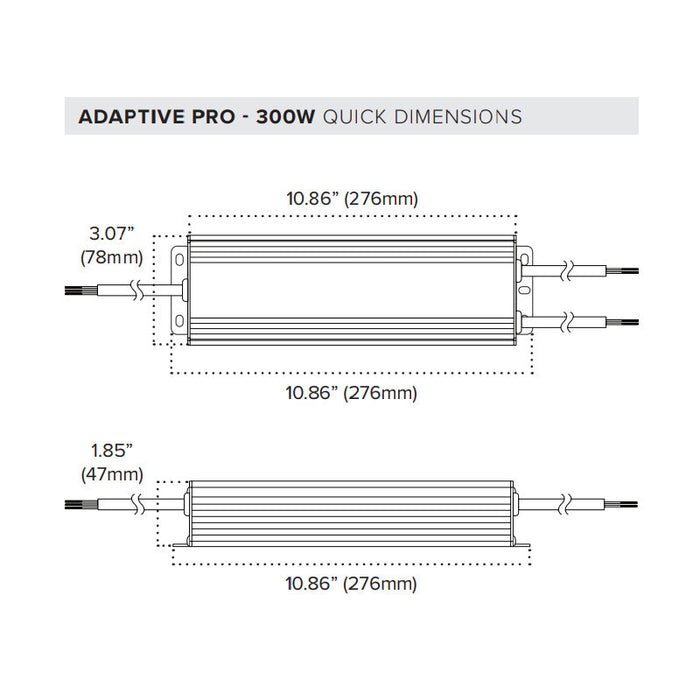

Dimensions

• 200W: 10.07" L x 3.07" W x 1.85" H
• 300W: 10.86" L x 3.07" W x 1.85" H

Documents

• Spec Sheet - 200W
• Spec Sheet - 300W

Labels and Listings

• cULus Listed Wet location rated
• Class P, Type HL, FCC Compliant
